The Material That Refuses to Forgive: How Choosing Bare Stainless Turned Every Tolerance Into a Public Verdict

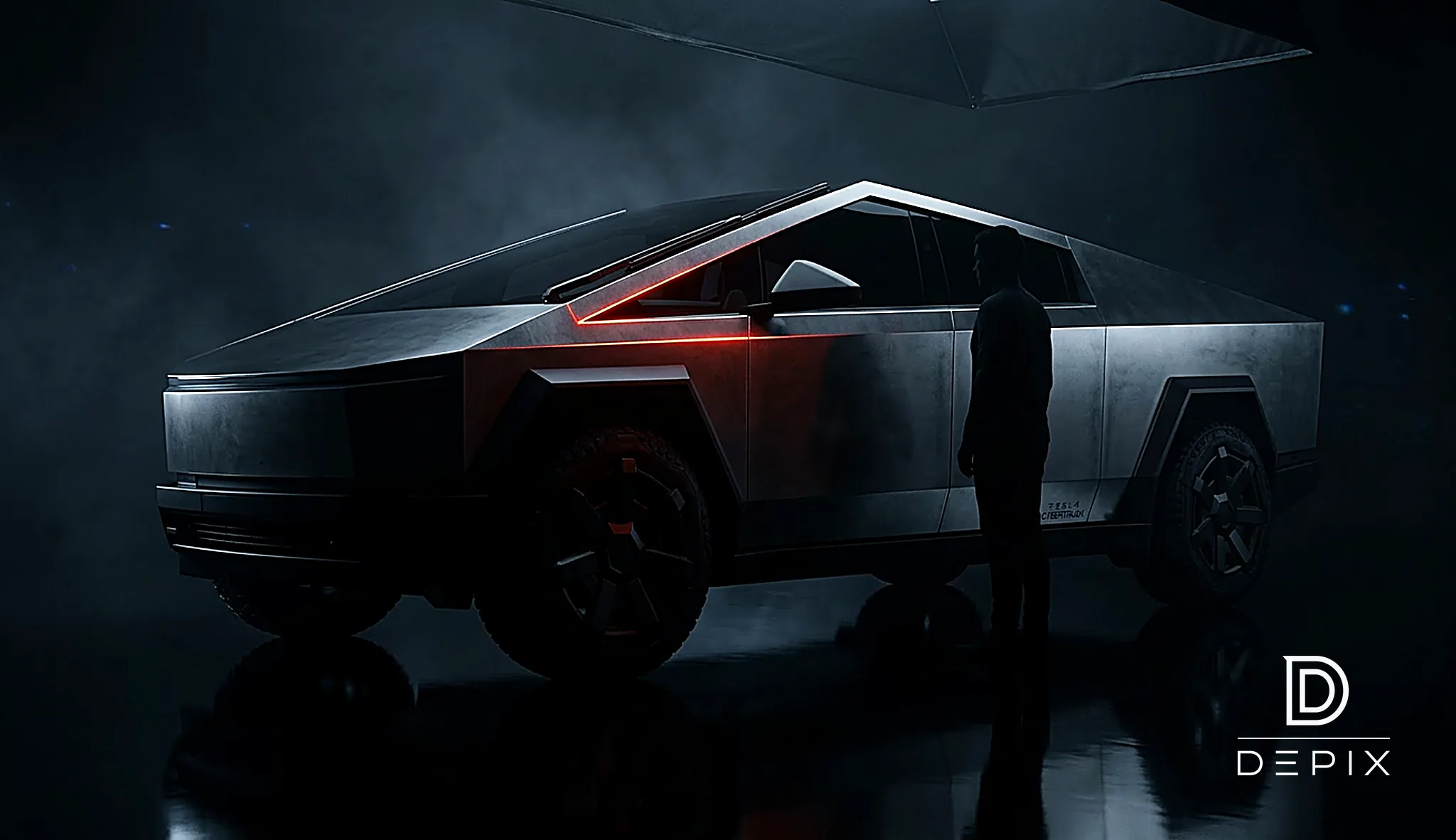

A painted body is a body with an alibi. Primer, base coat, clear coat — three layers whose quiet second job is to swallow the millimetre a stamping press missed, soften the shadow a panel gap throws, and unify a dozen separately-tooled parts into one optical surface. The Cybertruck threw the alibi away. Bare 30X cold-rolled stainless, flat-folded, no curve to disguise a join and no paint to mask a flaw, means the body now reports its own manufacturing tolerances directly to the street. The design decision wasn't the look. The design decision was choosing a material that would make every later decision unhideable — and pre-committing years of quality risk to a surface that keeps no secrets.

The decision happened before the first panel was stamped

When Tesla committed to an unpainted stainless exoskeleton, it didn't choose a finish. It chose to delete the entire layer of the build process where studios normally absorb compromise.

Tesla describes the body as a 30X cold-rolled stainless steel exoskeleton — the company's branding for a custom 300-series austenitic alloy, forming both the body and the structure, and "the first mass-market vehicle to be built out of 30X cold rolled stainless steel exoskeleton" (Torque News, drawing on Tesla material specs; repairer coverage of the 2019 reveal, 22 Nov 2019). The construction "eliminates the need for separate painted body panels and means traditional paint processes simply aren't part of the equation."

Read that as a manufacturing decision and it sounds like a saving — no paint shop, the single most expensive and polluting line in a car plant. Read it as a design-intelligence decision and it is the opposite of a saving. Paint is not just cost; paint is margin for error. Removing it didn't simplify the problem. It moved every future tolerance error from "invisible under clear coat" to "visible from across a car park, forever." The look was the headline. The consequence was the product.

A material that fights the geometry it was chosen for

The aesthetic the studio wanted — flat planes, sharp folds, a faceted silhouette — is precisely the geometry this material resists. Stainless does not want to be folded into crisp, dead-flat panels and stay there.

By the time the truck went into production, Tesla's own engineering leadership conceded the difficulty. Per coverage dated 28 November 2023, Tesla's VP of Engineering allowed that "forming stainless steel is not rocket science," yet it proved "way more challenging than the typical aluminum alloys automakers use." The cold-rolled sheets "tended to circle back to the shape they were brought in," forcing Tesla to "laser each piece individually and then malleableize them into the respective form," and to achieve "extreme precision in order to cut and shape the pieces in a way that will result in subsequent assembly without the huge panel gaps" (Notebookcheck, 28 Nov 2023).

That is the whole DI argument in one engineer's sentence. The hard part wasn't the styling. The hard part was that the styling and the material were pulling against each other, and the chosen material had no surface treatment to hide the disagreement. The flat fold is the most punishing shape on the least forgiving material — a compounding choice, made in the studio, paid for on the line.

"The worst panel gap I've ever seen" — the verdict goes public

A tolerance miss on a painted car is a footnote. On bare stainless it is a headline with a named author.

In a review dated 20 March 2024, Marques Brownlee — reviewing his own delivery vehicle — said of one join: "This panel gap is actually worth mentioning. It's the worst panel gap that I've ever seen on a production vehicle… I've never seen a gap quite that bad" (InsideEVs, 20 Mar 2024). Industry coverage put the optics plainly: stainless "shows every imperfection; what would be a shrug on painted steel is a visual siren here," with "large, uneven gaps where stainless panels meet, misaligned tailgates, and inconsistent door fitment" common on early trucks (InsideEVs / Recharged owner-issue roundup).

Note what the material did to the severity of the failure. The gap itself may be a millimetre that a paint line would have visually closed. Because there is no paint to unify the surface and no radius to throw a soft shadow, the eye reads the join as a hard black line against a mirror. The defect didn't get bigger. The material made it legible. The studio's tolerance budget became a public scorecard.

The surface keeps no secrets — before or after the sale

The unhideability does not end at the factory gate. Bare stainless is a permanent, self-documenting surface for the life of the vehicle.

"Lacking a clear coat, it readily attracts and displays fingerprints, smudges, and surface contaminants, requiring frequent manual cleaning" (Torque News). Worse, the corrosion-resistance the material was chosen for can be defeated by ordinary use: bird and fly droppings that "stay on its finish long enough to form a spot" cause the stainless to lose its corrosion-resistant advantage, alongside dents and scratches. Stainless-steel specialist Chris Nicholson's assessment of owner-side repair was blunt — owners "are going to have to learn how to do this," i.e. sand and refinish the metal by hand, "as the unpainted material cannot hide damage unlike traditional painted vehicles" (Notebookcheck, 28 Nov 2023).

Then the structural verdict arrived. In a report dated 14 March 2025, Fortune documented a delivery halt: "the glue holding the pickup truck's stainless steel exterior in place is failing for many Tesla customers, causing its sides to protrude," with "all outbound vehicles… stopped amid concerns that the glue holding the exterior stainless steel panelling in place is failing." Owners in cold climates had "been warning about it for weeks, posting images of sharp-edged metal trim protruding from their vehicles and flapping in the wind while driving"; Tesla "did not respond to Fortune's request for comment" (Fortune, 14 Mar 2025). The bare-metal trim that made the truck unmistakable is the same trim the public watched peel off in the wind.

Where the material actually held — and why that proves the point

The honest counter-evidence is the most useful evidence. When the tolerances were hit, the same unforgiving surface that punished failure rewarded success — and that asymmetry is exactly why seeing the consequence early matters.

Sandy Munro's teardown found panel gaps "within the 1mm tolerance Munro typically allows," described as surprisingly well-executed against early skepticism (InsideEVs / Munro commentary; Munro structural analysis, leandesign.com). Munro's team also noted the manufacturing knife-edge the material imposed: the fabrication process "must not mark the panels in the slightest, as there are no layers of primer and paint to hide these imperfections," and engineers had to add "gaps and grooves to the geometry to ensure complete coating and drying" of the e-coated subassembly (Munro teardown insights, leandesign.com).

This is the asymmetry the studio bought into: on bare stainless, a well-built join looks spectacular and a poorly-built one looks catastrophic, with no middle ground because there is no paint to land in the middle. The material doesn't average. It amplifies — in both directions. Choosing it was choosing to make build quality the headline feature, win or lose.

The DI reading: a material choice is a decision you can't take back

Strip away the brand and the Twitter wars and one durable lesson remains for any studio choosing a high-consequence finish — bare metal, raw aluminium, exposed carbon, unpainted polymer, single-piece glass.

A material is not a styling layer. It is a pre-commitment to years of manufacturing and quality risk that the studio signs off in the concept phase and the public collects on at delivery. The Cybertruck's stainless removed every place a body normally hides a compromise: no paint to mask a flaw, no curve to disguise a gap, no soft radius to forgive a tolerance. Each of those is a forgiveness mechanism, and the decision to delete them was made years before anyone could measure a single gap.

The expensive failure here was not the panel that misaligned. It was that the consequence of an unforgiving, mirror-flat, sharp-folded surface — how it would read light, telegraph every join, and turn a millimetre into a public verdict — was knowable as a design decision, not discoverable only as a manufacturing outcome. The question a studio should be able to answer before it commits the tooling is not "does this look radical in a render" but "what does this material do to every decision I make after it, and can I see that consequence now, on the surface, in the light, at the gap — before it becomes a verdict I can't recall."

Seeing the consequence of the material before committing to it is the product. The photoreal surface — the way bare stainless reads a reflection, the way a flat fold throws a hard shadow, the way a gap goes from invisible to siren — is the evidence. The decision the studio gets to make, with eyes open, is the thing worth buying. The Cybertruck is the case study in what it costs to make that decision blind.

Signal check

A LinkedIn posts search (Unipile, account verified live) surfaced design-engineering practitioners already filing the Cybertruck under #ProductDevelopment #EngineeringLessons #Prototyping — e.g. a founder-level industrial-design post tagging the truck explicitly as an engineering lesson (Dave Gaffney, Founder, 2Pi Design; post dated 15 Aug 2024). The verdict the studio's material handed to the public has become a teaching case inside the profession — which is precisely the audience DI speaks to.
